Default Turbo Specifications

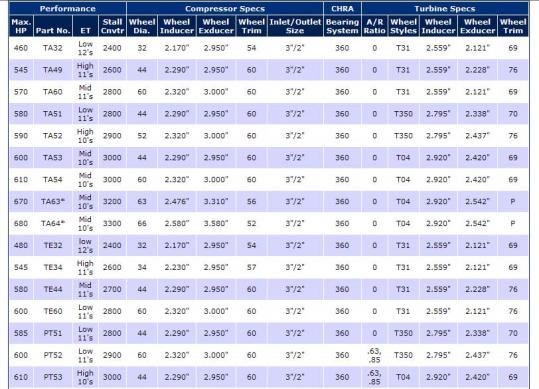

Some info about some popular turbo designations.

Attached Thumbnails
Click image for larger version

Name:	turbospec.gif
Views:	7843
Size:	83.7 KB
ID:	1309
__________________
Ken Mosher
1987 GN original owner 650+ HP Black
2015 BMW 328xi XDrive wagon
2012 Volkswagen Tiguan (the Tig!) Night Blue Met (sold)
2006 Trailblazer SS Red Jewel Tint 395 HP AWD (sold)
2014 Silverado LTZ Crew 4WD
2012 Honda VFR 1200F Tahitian Blue (sold)
2015 BMW S1000R Racing Red
2013 Honda CBR500R Red (wife's bike)
2014 Triumph Bonneville T100
2003 Harley Davidson V Rod Anniversary Edition
Reply With Quote
  #2
Old 01-01-2009, 05:45 PM
Ts86ttype's Avatar
Ts86ttype Ts86ttype is offline
Tech Support

Join Date: Jan 2006
Location: Washington
Posts: 646
Ts86ttype is on a distinguished road
Default Re: Turbo Specifications

Thanks Ken, Great info on turbos... Tom G.
__________________
www.tomsttype.com
Grand National Diagnostic Manuals
Reply With Quote
  #3
Old 01-01-2009, 09:47 PM
PaCemkr86's Avatar
PaCemkr86 PaCemkr86 is offline
Tech Support

Join Date: Jan 2005
Location: Texas
Posts: 4,817
PaCemkr86 is on a distinguished road
Send a message via AIM to PaCemkr86
Default Re: Turbo Specifications

nice work Ken
__________________
Phil Underwood

My Turbo Buick
Reply With Quote
  #4
Old 01-02-2009, 12:51 PM
kenmosher's Avatar
kenmosher kenmosher is offline
Whoosh

Join Date: Aug 2004
Location: CO
Posts: 3,984
kenmosher is on a distinguished road
Default Re: Turbo Specifications

Can't take any credit for it ... just ran across it while surfing. Thought it might be a nice reference for folks...
__________________
Ken Mosher
1987 GN original owner 650+ HP Black
2015 BMW 328xi XDrive wagon
2012 Volkswagen Tiguan (the Tig!) Night Blue Met (sold)
2006 Trailblazer SS Red Jewel Tint 395 HP AWD (sold)
2014 Silverado LTZ Crew 4WD
2012 Honda VFR 1200F Tahitian Blue (sold)
2015 BMW S1000R Racing Red
2013 Honda CBR500R Red (wife's bike)
2014 Triumph Bonneville T100
2003 Harley Davidson V Rod Anniversary Edition
Reply With Quote
  #5
Old 01-11-2009, 06:41 PM
MCHdrivesan86GN's Avatar
MCHdrivesan86GN MCHdrivesan86GN is offline
Senior Member

Join Date: May 2008
Location: MI
Posts: 106
MCHdrivesan86GN is on a distinguished road
Default Re: Turbo Specifications

Very Nice!!
__________________
1986 Grand National
TE44
42# Injectors
Walbro340
Alky Injection
60' 1.79 11.88 @ 113 MPH
Reply With Quote
  #6
Old 01-22-2009, 10:29 PM
PaceCarTA PaceCarTA is offline
New Member

Join Date: Feb 2006
Posts: 17
PaceCarTA is on a distinguished road
Default Re: Turbo Specifications

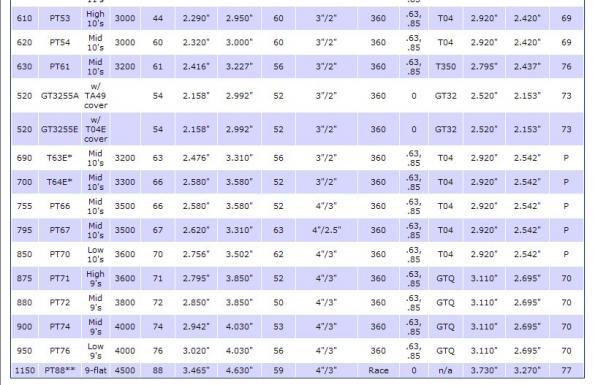

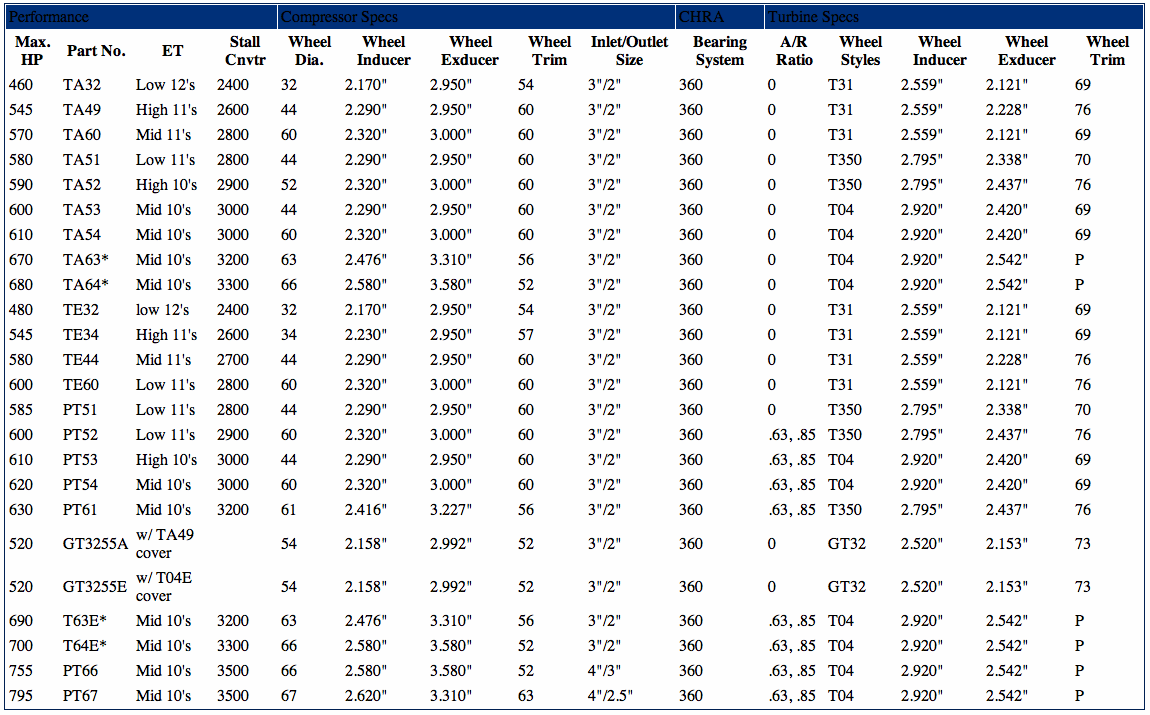

heres some more





note* have to give gredit where its due ... above specs posted by ken is from precision turbos site ( http://www.precisionturbo.net/turboc...tegory_id=3026) and appears they now stop at the 67 turbo , this info is from their old link which i cant seem to locate or i would just link to it.. but it goes beyond the 67 turbo
Attached Thumbnails
Click image for larger version

Name:	turbospec#1.jpg
Views:	4193
Size:	48.6 KB
ID:	1345  Click image for larger version

Name:	turbospec#2.jpg
Views:	5861
Size:	48.7 KB
ID:	1346
__________________
Paul, - www.MAGNAbuick.com -
the 87 -GNx'd
the 86 -GN 71GTQ FAST th400 PTC 9.81 @137.68 1.46 60' 93 and alky
the 87Ttop-Gn 74gtq XFI TR6 200-4r PTC caged
http://www.streetfire.net/video/86-b...as_2425180.htm

Last edited by PaceCarTA; 01-22-2009 at 10:37 PM.
Reply With Quote
  #7
Old 01-22-2009, 10:53 PM
PaceCarTA PaceCarTA is offline
New Member

Join Date: Feb 2006
Posts: 17
PaceCarTA is on a distinguished road
Default Re: Turbo Specifications

found it heres the link to precisions old spec page

http://www.precisionturbo.net/turboc...tegory_id=3022

and heres the link for the GT series turbos

http://www.precisionturbo.net/turboc...tegory_id=3023

t3/t44 bolt turbos specs
http://www.precisionturbo.net/turboc...tegory_id=3026

new boosted turbos
http://www.precisionturbo.net/turboc...tegory_id=5936

mid /large frame turbos
http://www.precisionturbo.net/turboc...tegory_id=3028

t4 race turbos
http://www.precisionturbo.net/turboc...tegory_id=3027
__________________
Paul, - www.MAGNAbuick.com -
the 87 -GNx'd
the 86 -GN 71GTQ FAST th400 PTC 9.81 @137.68 1.46 60' 93 and alky
the 87Ttop-Gn 74gtq XFI TR6 200-4r PTC caged
http://www.streetfire.net/video/86-b...as_2425180.htm

Last edited by PaceCarTA; 01-22-2009 at 11:09 PM.
Reply With Quote
  #8
Old 03-24-2010, 02:34 AM
trev0006 trev0006 is offline

Join Date: Mar 2010
Posts: 5
trev0006 is on a distinguished road
Default Re: Turbo Specifications

Great, was looking for this.





Quote:
Originally Posted by PaceCarTA View Post
found it heres the link to precisions old spec page

http://www.precisionturbo.net/turboc...tegory_id=3022brakes

and heres the link for the GT series turbos

http://www.discountpartcenter.com/
http://www.dpccars.com/
http://www.discountpartcenter.com/tire/bfgoodrich.htm
http://www.discountpartcenter.com/tire/bridgestone.htm
http://www.discountpartcenter.com/tire/continental.htm
http://www.discountpartcenter.com/tires-easy/cooper.htm
http://www.discountpartcenter.com/tire/dunlop.htm
http://www.discountpartcenter.com/tire/firestone.htm
http://www.discountpartcenter.com/tire/fuzion.htm
http://www.discountpartcenter.com/tire/general.htm
http://www.discountpartcenter.com/tire/goodyear.htm
http://www.discountpartcenter.com/tire/hankook.htm
http://www.discountpartcenter.com/tire/hoosier.htm
http://www.discountpartcenter.com/tire/kumho.htm
http://www.discountpartcenter.com/tire/michelin.htm
http://www.discountpartcenter.com/tire/pirelli.htm
http://www.discountpartcenter.com/tire/sumitomo.htm
http://www.discountpartcenter.com/tire/uniroyal.htm
http://www.discountpartcenter.com/tire/yokohama.htm
http://www.discountpartcenter.com/wheels/allwheels.htm
http://www.discountpartcenter.com/ti...st_results.htm
http://www.discountpartcenter.com/ti...nformation.htm
http://www.discountpartcenter.com/tirecalc.html
http://www.discountpartcenter.com/su...suspension.htm
http://www.discountpartcenter.com/tire/alltires.htm
http://www.discountpartcenter.com/brakes/brakes.htm
http://www.dpccars.com/rcvideos/rc-car-plane-videos.htm

http://www.precisionturbo.net/turboc...tegory_id=3023RC cars

t3/t44 bolt turbos specs
http://www.precisionturbo.net/turboc...tegory_id=3026wheels

new boosted turbos
http://www.precisionturbo.net/turboc...tegory_id=5936parts

mid /large frame turbos
http://www.precisionturbo.net/turboc...tegory_id=3028cars

t4 race turbos
http://www.precisionturbo.net/turboc...tegory_id=3027tires

Last edited by trev0006; 04-10-2013 at 09:21 PM.
Reply With Quote
  #9
Old 03-17-2011, 08:48 PM
blownic blownic is offline

Join Date: Mar 2011
Posts: 1
blownic is on a distinguished road
Default Re: Turbo Specifications

thanks for posting this. should put a few garage debates to rest.
Reply With Quote
  #10
Old 10-30-2011, 11:51 PM
NaStY 84'T-tYpE's Avatar
NaStY 84'T-tYpE NaStY 84'T-tYpE is offline
Member

Join Date: Jul 2009
Location: Wa
Posts: 48
NaStY 84'T-tYpE is on a distinguished road
Default Re: Turbo Specifications

Hey Kenmosher, as you may know i have a 84 T-type all stock.. my questions is where can i find what are the specs for my turbo, i'm thinking of adding a bigger turbo and i need to know what's the biggest i can go? and thanks in advanced and just in case you wanted to know the numbers on my turbo are M26 193/83

Last edited by NaStY 84'T-tYpE; 10-30-2011 at 11:54 PM. Reason: adding info
Reply With Quote
