| Injector Flow Charts for Popular Injectors |
| Introduction |
| I found the results of my testing kind of surprising. The 009's looked real good on the bench. I don't get the bad rap they seem to have.
All injectors were flowed at 40 psi with the standard stoddard solvent. The high numbers on the 52 and 55 lb injectors are kind of a guestimate since they overflowed the machine at the higher pulse widths. Some real hose nozzles! :) |

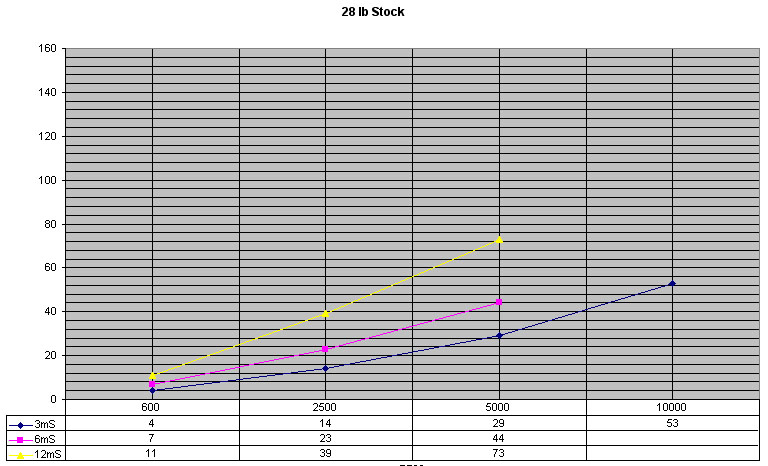

| Stock Injectors |
|
|

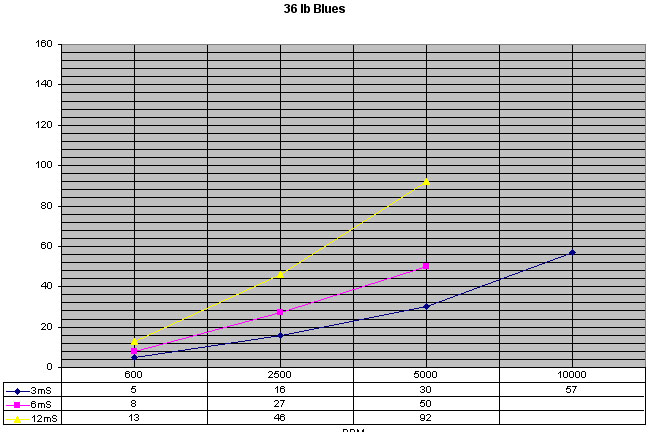

| 36 lb/hr Blue Top Injectors |
|
|

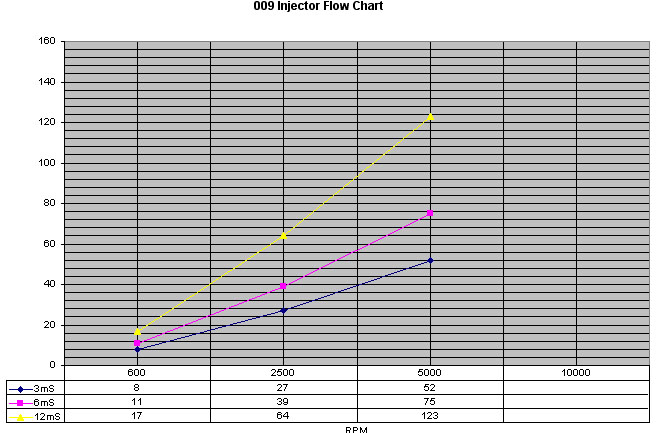

| 009 43.5 lb/hr |
|
|

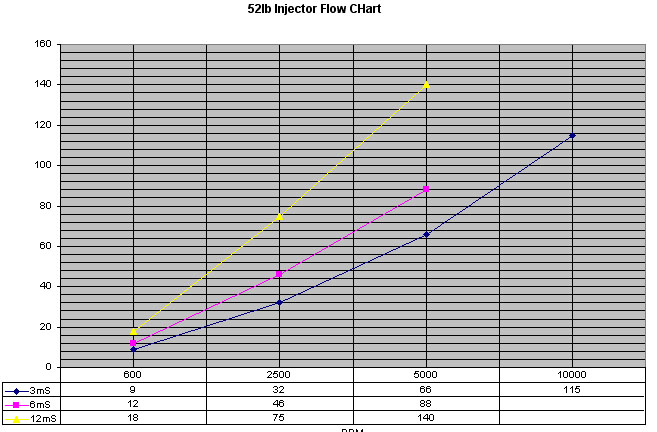

| 52 lb/hr |
|
|

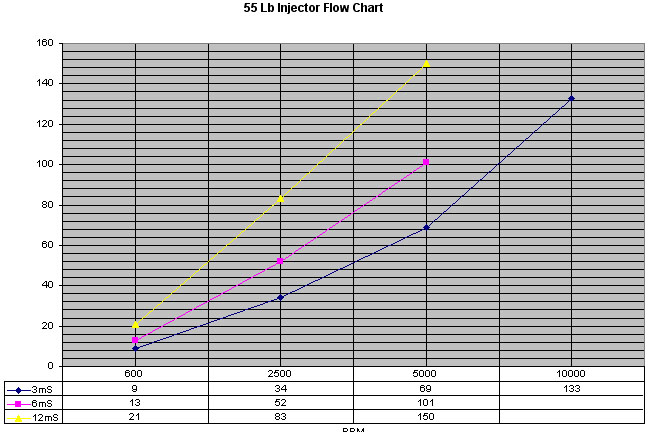

| 55 lb/hr |
|
|
