1986-1987 Production Block 3.8 Liter with Girdle
Casting number 25526109

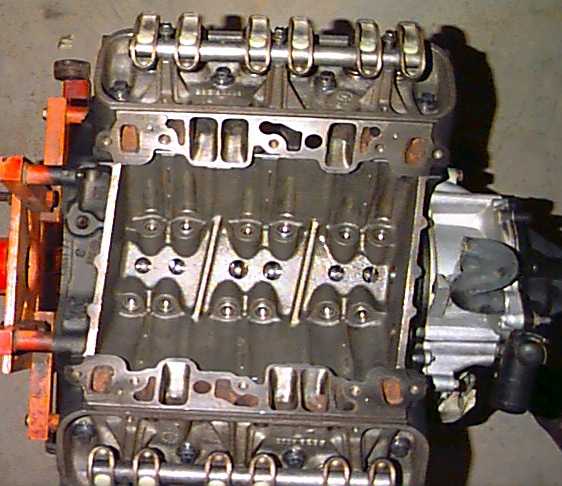

TOP
Features of Note:
- Notice the solid lifter valley with holes drilled for oil return.
- 25526109 Turbo Block with 4.1L cylinder heads installed. Notice extensive port work done on heads.

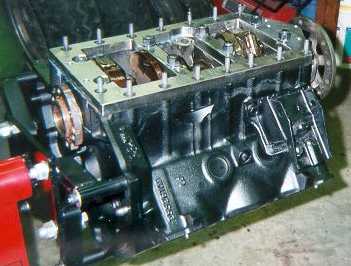

BOTTOM/REAR

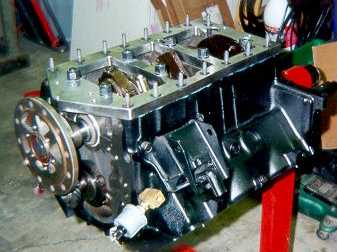

BOTTOM/FRONT
Features of Note:
- Rear view of Block Girdle (from Jason Cramer) attached to a 25526109 Turbo Block
- Notice how rear main studs and bolts are flush with girdle for clearance
Features of Note:
- Notice the way the mains are studded through the girdle
- Notice extended oil pan studs
