1986-1987 Production Turbo Block 3.8 Liter
Casting number 25526109 with bushed lifter bores

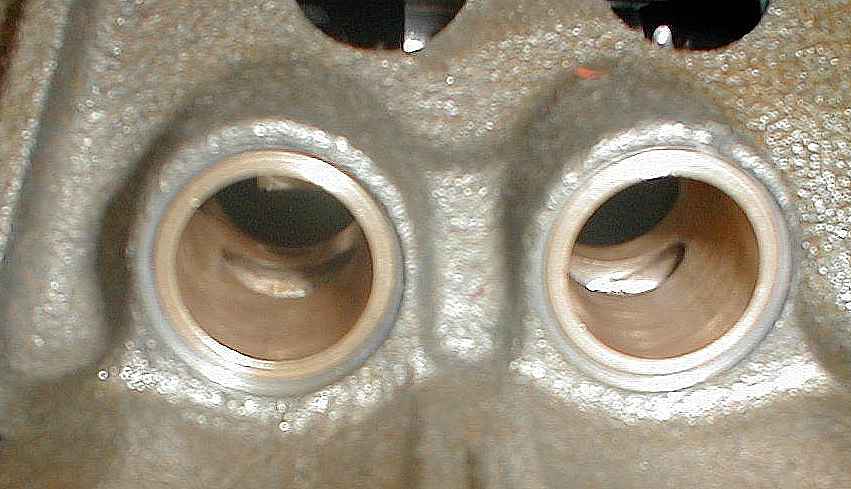

CLOSE UP
Features of Note:
- Notice the brass bushing/sleeves
- The sleeves allow for precise alignment of the lifter on the cam lobes

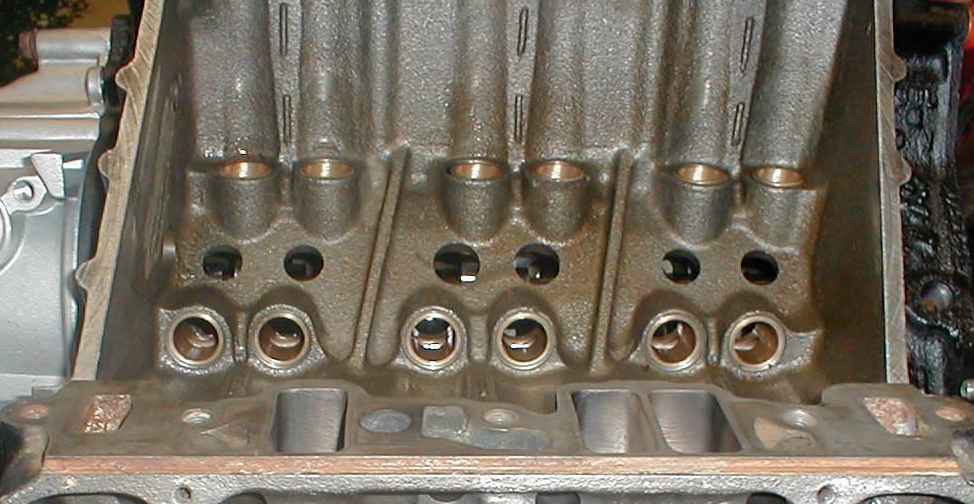

VALLEY
Features of Note
:
- This is a picture with all bushings installed
- The stock bores are drilled out and then the bushing is press fit in place
- Final bore then aligns the hole over the cam lobe

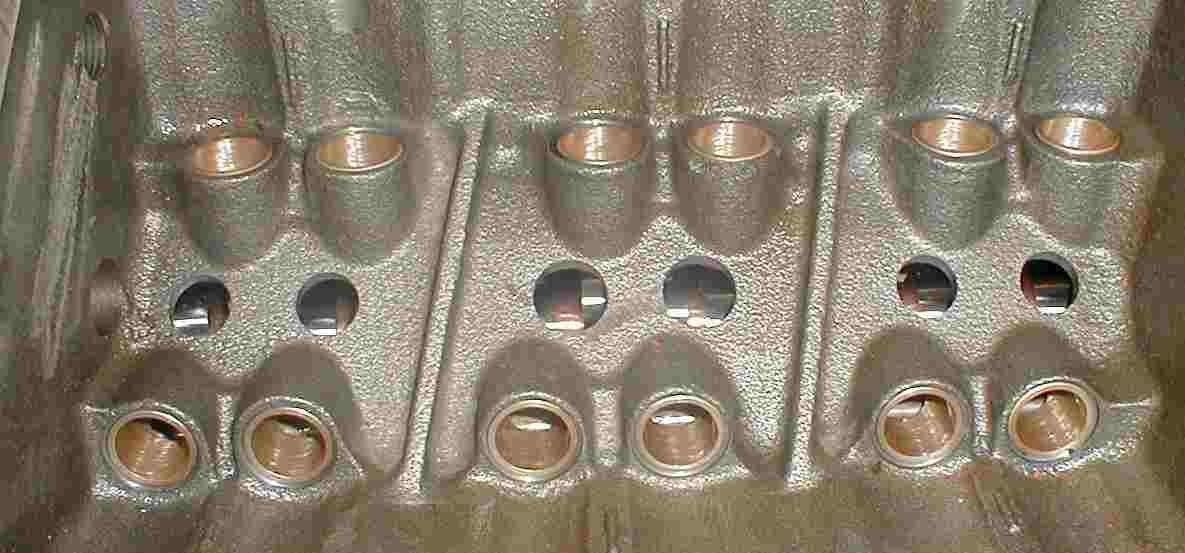

VALLEY
Features of Note:
- Another view
CLOSE UP
Features of Note:
- Notice the brass bushing/sleeves
- The sleeves allow for precise alignment of the lifter on the cam lobes
VALLEY
:
- This is a picture with all bushings installed
- The stock bores are drilled out and then the bushing is press fit in place
- Final bore then aligns the hole over the cam lobe
VALLEY
Features of Note:
- Another view
