1986-1987 Production Turbo Block 3.8 Liter
Casting number 25526109

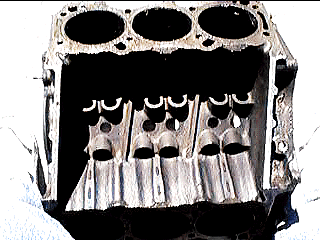

TOP

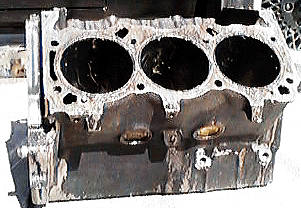

RIGHT
Features of Note:
- Notice the solid lifter valley with holes drilled for oil return.
- Notice the knock sensor provision ( hole on right side of picture)
Features of Note:
- Notice the four bolt holes per cylinder
- Notice the flat boss for a water jacket drain between the freeze plugs.

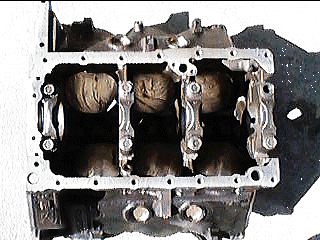

BOTTOM

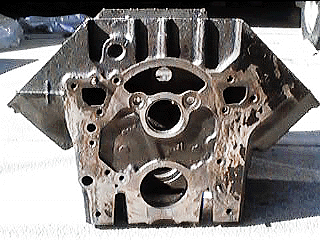

FRONT
Features of Note:
- Rear main is pretty beefy (left side of picture)
- Oil Pickup mount is at the top and right side of picture
Features of Note:
- Notice turbo oil return hole (top left of block)
- Cam oil galleries are to either side of cam journals (no plugs in picture)
