Stage I Off Center Block 4.1 Liter

Casting number 25500016

TOP

SIDE

Features of Note:

Notice the solid lifter valley with oil return being accomplished at the front (left) of the block through a hole where the valley and the front meet.
Notice the knock sensor provision ( hole on right side of picture)
This block is covered in cosmoline for protection. It's "virgin" and not rusted.
Notice 6 bolts per cylinder and studs
Deck is 0.500" thick

Features of Note:

Notice the "Power 6" cast into the side
Notice the casting number (upper left) 25500016
Notice the beefy casting in the skirts

BOTTOM

FRONT

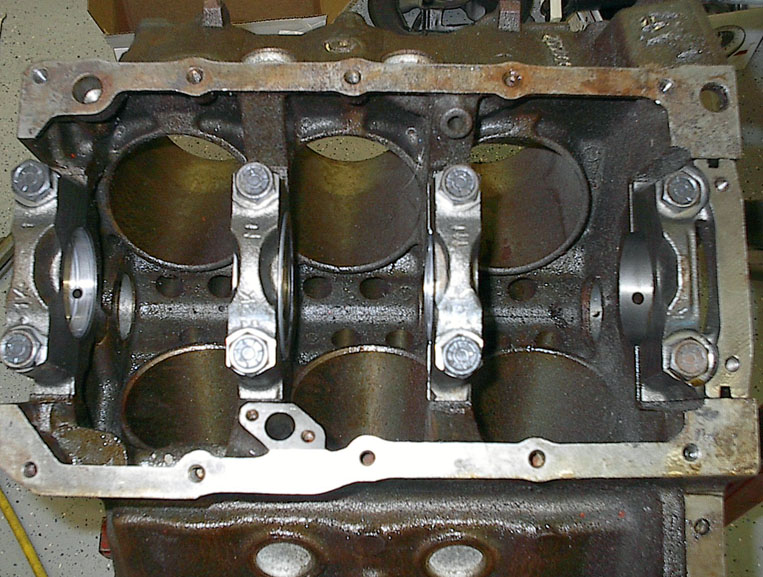

Features of Note:

Notice thicker main webs in block
2 bolt cast iron main caps
Stock location oil pump pickup

Features of Note:

Notice beefy front web near the mains
Ribs in the front valley area

TOP	SIDE

Features of Note: Notice the solid lifter valley with oil return being accomplished at the front (left) of the block through a hole where the valley and the front meet. Notice the knock sensor provision ( hole on right side of picture) This block is covered in cosmoline for protection. It's "virgin" and not rusted. Notice 6 bolts per cylinder and studs Deck is 0.500" thick	Features of Note: Notice the "Power 6" cast into the side Notice the casting number (upper left) 25500016 Notice the beefy casting in the skirts
BOTTOM	FRONT

Features of Note: Notice thicker main webs in block 2 bolt cast iron main caps Stock location oil pump pickup	Features of Note: Notice beefy front web near the mains Ribs in the front valley area

Submitted by:

David Roland
