Early Heads 3.8 Liter

Casting number B1257661

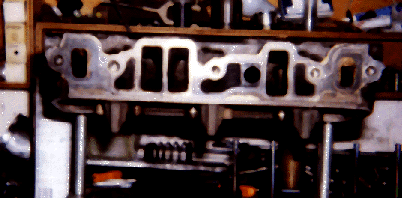

INTAKE

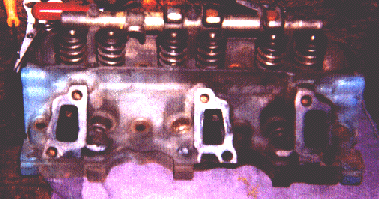

EXHAUST

Features of Note:

Intake ports look very similar to later heads

Features of Note:

Notice the tall exhaust ports
Notice how narrow the exhaust ports get on at the top

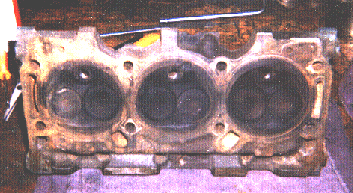

COMBUSTION CHAMBER

Features of Note:

Notice no "bridge" on the end of the head water passages
Four bolts per cylinder

INTAKE	EXHAUST

Features of Note: Intake ports look very similar to later heads	Features of Note: Notice the tall exhaust ports Notice how narrow the exhaust ports get on at the top
COMBUSTION CHAMBER

Features of Note: Notice no "bridge" on the end of the head water passages Four bolts per cylinder

Submitted by:

Eric Ruybalid
