Procution 1984-1985 Turbo 3.8 Liter Intake

Casting number 25515926

TOP

SIDE

Features of Note:

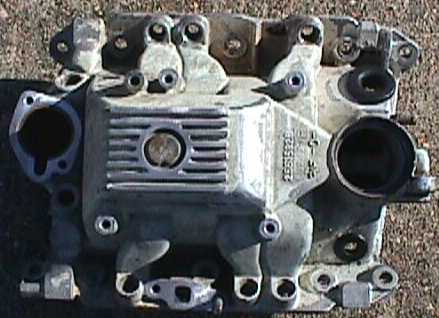

From the top you can see the PCV hole with grommet on one side and the turbo oil drain with grommet on the other side.
The intake uses the older style thermostat like a SBC (left side of picture)
Turbo inlet is on the right side of the picture

Features of Note:

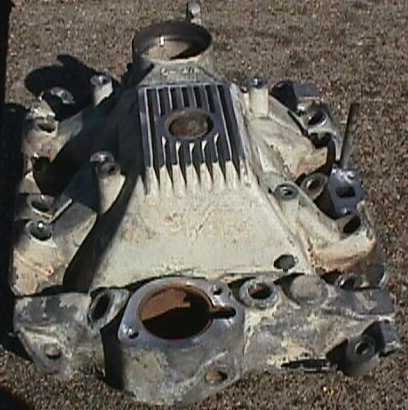

From the side you can see decent sized intake ports
You can see the "low rise" intake runners and central plenum area.

BOTTOM

TURBO INLET

Features of Note:

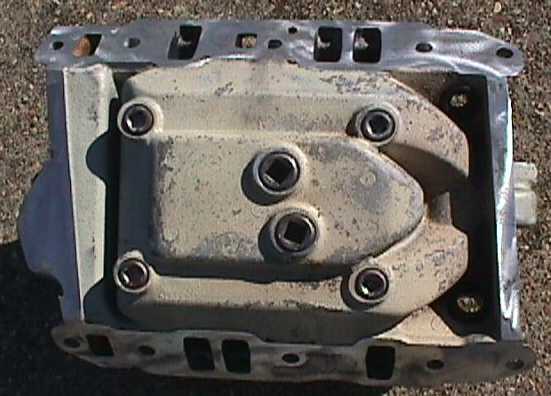

The bottom of the intake shows some of the flow path
Air enters the intake flows to the front of the intake and turns back and is distributed to the intake runners.
Features of Note:

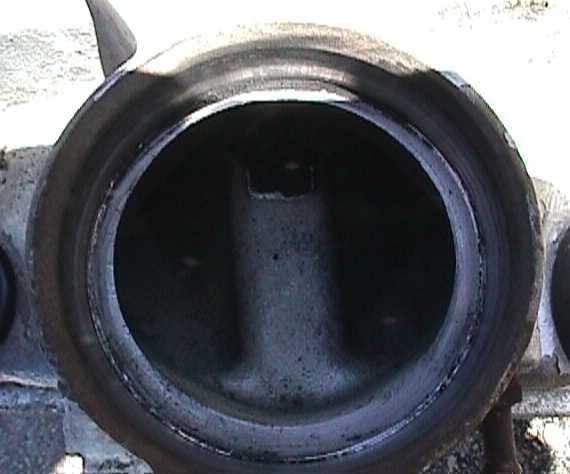

The intake hole for the turbo is split directing the flow to the right and left separately with the EGR port in the middle.
You can see where the EGR port comes through the intake from the head, it is directed to the turbo inlet through the valve and pipe(not pictured) to a large threaded hole on the side of the turbo inlet port on the intake

BACK

FRONT

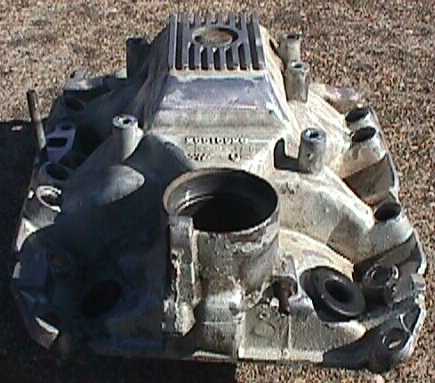

Features of Note:

This view clearly shows the turbo inlet
You can see the grommets for the oil return and EGR
Features of Note:

This view clearly shows the larger thermostat opening.

TOP	SIDE

Features of Note: From the top you can see the PCV hole with grommet on one side and the turbo oil drain with grommet on the other side. The intake uses the older style thermostat like a SBC (left side of picture) Turbo inlet is on the right side of the picture	Features of Note: From the side you can see decent sized intake ports You can see the "low rise" intake runners and central plenum area.
BOTTOM	TURBO INLET

Features of Note: The bottom of the intake shows some of the flow path Air enters the intake flows to the front of the intake and turns back and is distributed to the intake runners.	Features of Note: The intake hole for the turbo is split directing the flow to the right and left separately with the EGR port in the middle. You can see where the EGR port comes through the intake from the head, it is directed to the turbo inlet through the valve and pipe(not pictured) to a large threaded hole on the side of the turbo inlet port on the intake
BACK	FRONT

Features of Note: This view clearly shows the turbo inlet You can see the grommets for the oil return and EGR	Features of Note: This view clearly shows the larger thermostat opening.

Submitted by:

Joe Cook
