Production 1984-1985 Turbo 3.8 Liter Intake
Casting number 25515926
TOP
TURBO MOUNTING
Features of Note:

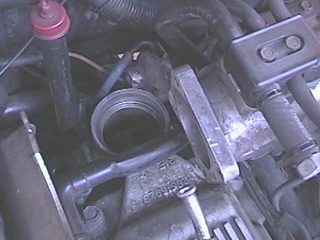

- This is a view of the unique way that the oil return runs on an '84/85 turbo setup.
- Arrow points to grommet in the intake that the oil return pipe plugs into
Features of Note:
- In this view you can see the oil feed line (bottom/center of picture
- The throttle body is to the right of the picture.
- It's a TIGHT fit for the turbo in this mounting postion!
MOUNTING
TURBO INLET

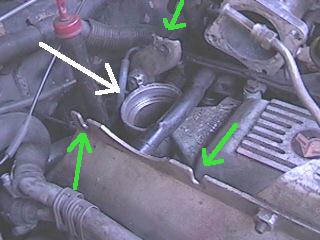

Features of Note:
- Turbo inlet adapter plugs into the large hole (white arrow)
- Green arrows indicate mounting points for the turbocharger itself
Features of Note:

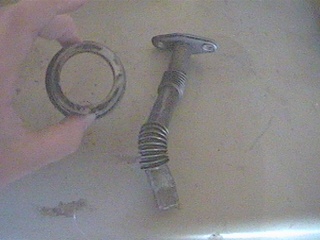

- This shows the oil return pipe
- Notice the 'bellows' to allow some flex and expansion
TOP
TURBO MOUNTING
Features of Note:
- This is a view of the unique way that the oil return runs on an '84/85 turbo setup.
- Arrow points to grommet in the intake that the oil return pipe plugs into
- In this view you can see the oil feed line (bottom/center of picture
- The throttle body is to the right of the picture.
- It's a TIGHT fit for the turbo in this mounting postion!
MOUNTING
TURBO INLET
- Turbo inlet adapter plugs into the large hole (white arrow)
- Green arrows indicate mounting points for the turbocharger itself
- This shows the oil return pipe
- Notice the 'bellows' to allow some flex and expansion
