Ported 1986-1987 Turbo 3.8 Liter Intake
Casting number

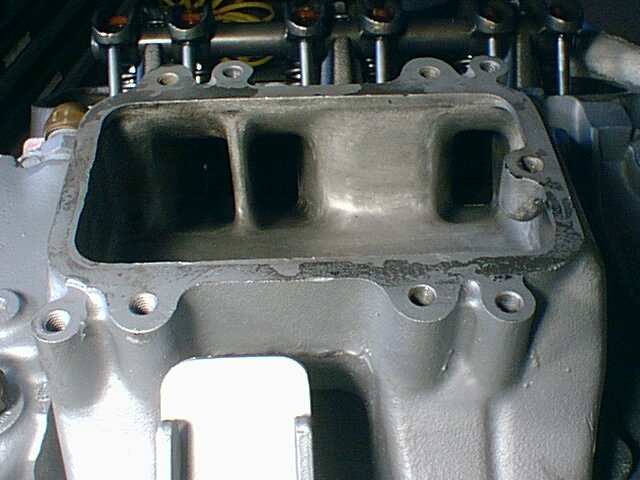

Ported Driver Side

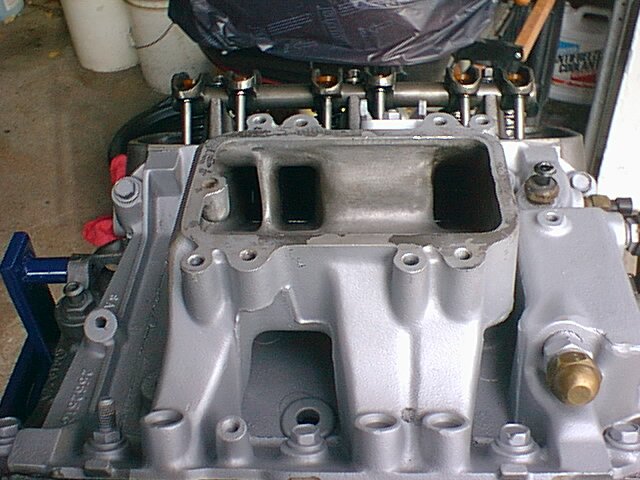

Ported Passenger Side
Features of Note:
- All aluminum
- This manifold has the EGR blocked off with a plate
- EGR tower is milled off in the front of the manifold (left side of the picture)
- Notice the extensive smoothing and blending around the interior surfaces
Features of Note:
- Here again you can see no EGR tower in the front of the manifold (right side of picture)
- Brass fitting at right of picture is where heater hose rail would go
- Again, see the smoothing and blending
- Ports have been matched to the heads (can't see this in the picture)

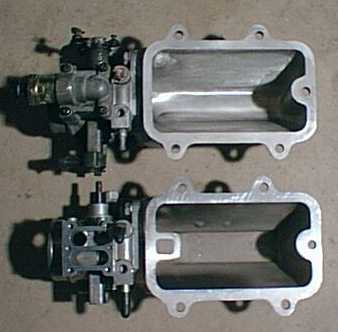

Ported Plenum
Ported Plenum
Features of Note:
- All aluminum
- EGR tower is milled off in the front of ported plenum (top)
- Notice the extensive smoothing and blending around the interior surfaces
- Even the little "bumps" for the throttle mounting bracket have been removed (top of the plenum in the picture)
Features of Note:
- From this angle you can see the EGR provision is removed
- You can see how all sharp angles have been radiused and smoothed to easy transitions

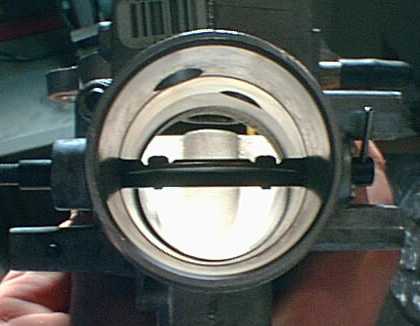

Stock Throttle Body

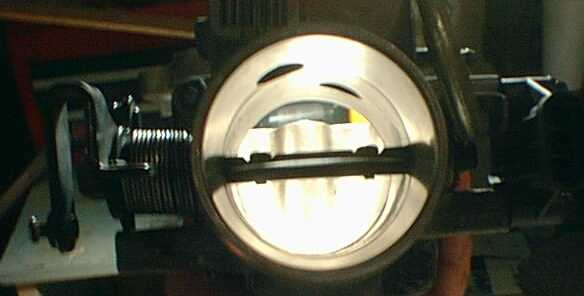

Ported Throttle Body
Features of Note:
- All aluminum
- You can see the uneven sizing in how the throttle body relates to the upper plenum
- Notice ridges and rough transitions all down the "barrel"
Features of Note:
- You can see the match up is much better here.
- Throttle body is smooth with no lips or transitions
- Gasket was trimmed to ensure it didn't protrude into the air flow
Ported Driver Side
Ported Passenger Side
Features of Note:
- All aluminum
- This manifold has the EGR blocked off with a plate
- EGR tower is milled off in the front of the manifold (left side of the picture)
- Notice the extensive smoothing and blending around the interior surfaces
- Here again you can see no EGR tower in the front of the manifold (right side of picture)
- Brass fitting at right of picture is where heater hose rail would go
- Again, see the smoothing and blending
- Ports have been matched to the heads (can't see this in the picture)
Ported Plenum
Ported Plenum
- All aluminum
- EGR tower is milled off in the front of ported plenum (top)
- Notice the extensive smoothing and blending around the interior surfaces
- Even the little "bumps" for the throttle mounting bracket have been removed (top of the plenum in the picture)
- From this angle you can see the EGR provision is removed
- You can see how all sharp angles have been radiused and smoothed to easy transitions
Stock Throttle Body
Ported Throttle Body
- All aluminum
- You can see the uneven sizing in how the throttle body relates to the upper plenum
- Notice ridges and rough transitions all down the "barrel"
- You can see the match up is much better here.
- Throttle body is smooth with no lips or transitions
- Gasket was trimmed to ensure it didn't protrude into the air flow
