Precision Turbo and Engine Front Mount
Front Mount

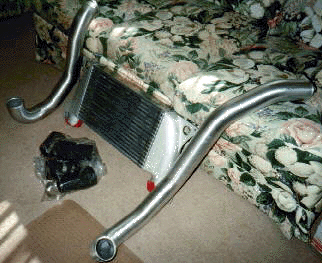

Features of Note:
  • This is the Precision Turbo and Engine (PTE) front mount kit
  • In this picture you can clearly see the large diameter, mandrel bent pipes
  • The intercooler itself has a large core with smooth end tanks
  • The bag contains all the necessary hoses and clamps
  • You can see the mounting "tangs" on teh corners of the intercooler core to make for easy mounting
  • Notice that the end of the pipes are slightly "flanged" or "lipped" to make for better hose retention
Features of Note:
  • This is another view of the same kit
  • You can see the size of the pipe easily by looking at the end of the nearest pipe in the picture
  • Notice the smoothness of the bends
  • The core is relatively thick from the inlets to the base of the core



Features of Note:
  • This is a picture with the intercooler installed in the car
  • You can see the smooth transition the expander hose makes from the outlet of the turbo compressor into the tube going to the intercooler
  • Notice the smooth bends again
  • You can see that the intercooler pipes are actually bigger than the throttle body and the turbo outlet in this particular installation. Rubber reducer hoses are used to adapt
  • The bigger pipes can easily accommodate larger throttle bodies and turbo outlets with a different hose

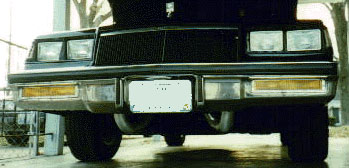

Features of Note:
  • Here's a picture of the front of the car after the installation
  • The only real clue that it is there are the two pipe that curve under the radiator support
  • Notice that both the pipes curve pretty tightly and tuck up

Submitted by:

Dan Smith
