ASSEMBLED REAR
|
CENTER SECTION DISASSEMBLED
|
|
|

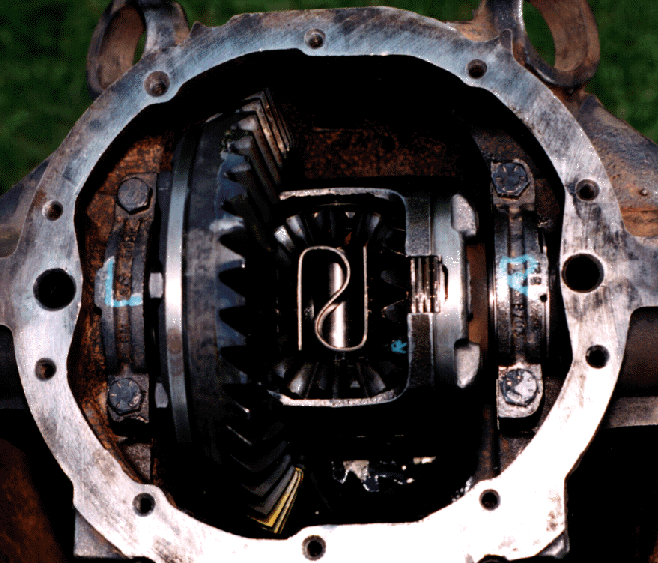

Features of Note:
- Assembled G80 8.5" GM Rear
- 3.42 gears installed
|

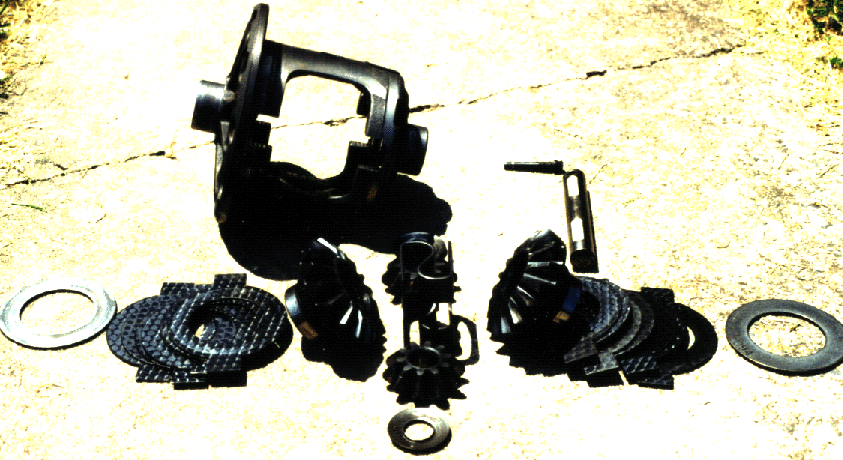

Features of Note:
- Exploded view of G80 Rear
- Notice clutch packs (left side of picture)
- Spider gear (middle of picture)
|
TOOLS IN PLACE
|
MEASURING BACKLASH
|
|
|

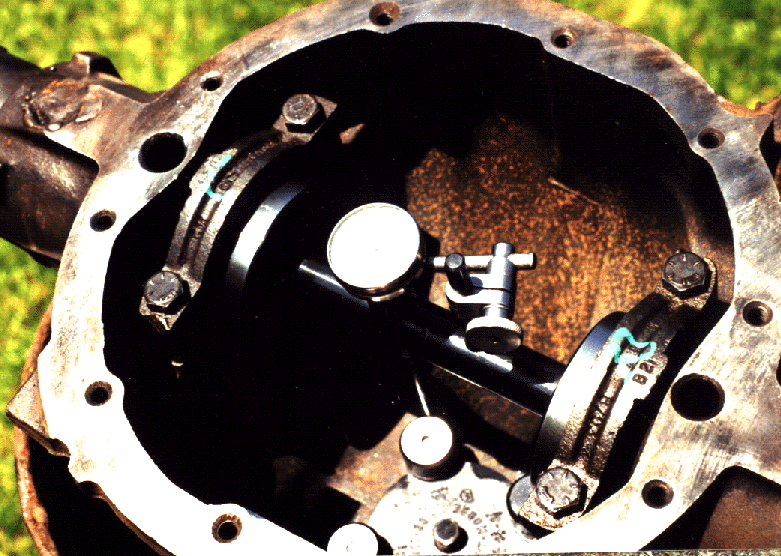

Features of Note:
- Rear disassembled
- Pinion depth tool installed
|

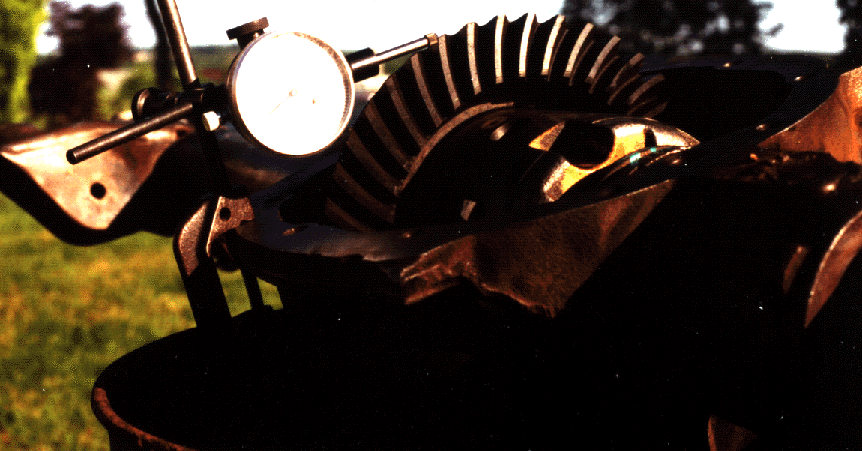

Features of Note:
- Dial Indicator set up for backlash measurement
|
POSITRACTION UNITS
|
TOOLS
|
|
|

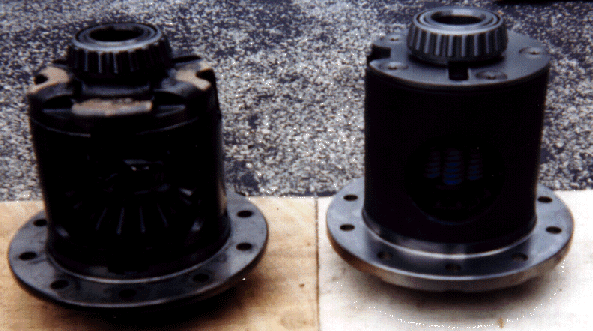

Features of Note:
- Stock G80 (left) and Auburn Pro Series (right)
- Auburn unit has bolt on end cap
- Auburn uses 5 coil springs instead of the stock "S" clip for tension on the clutches
- Stock has replaceable clutch packs, while the Auburn is a cone style unit
- Stock is rebuildable, but Auburn is not
- Ring gear mounting is thicker on the Auburn for less deflection
|

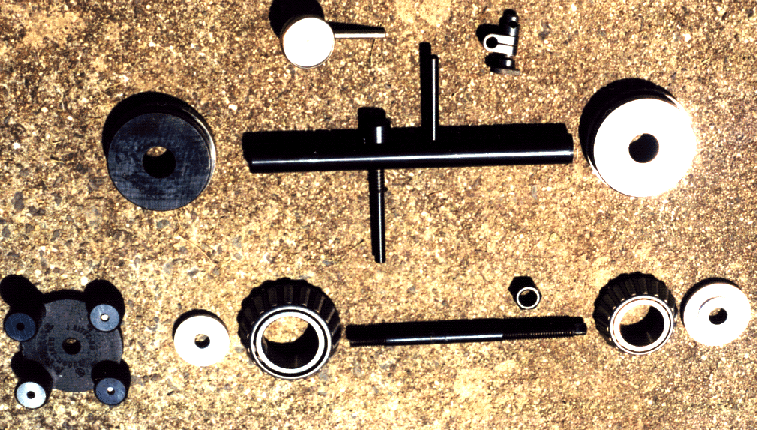

Features of Note:
- Tools used to set pinion depth
|
