PUMP SIDE
FLYWHEEL SIDE

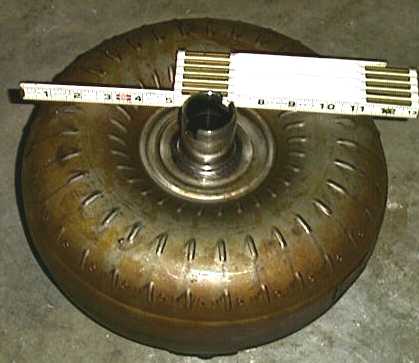

Features of Note:
- The ruler is to show the converter is 12" in diameter.
- The rounded shape of the interior shows there is not an antiballoon plate installed.

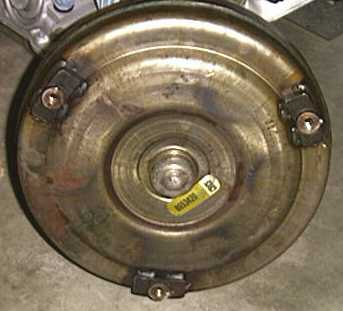

Features of Note:
- The flat front indicates a lockup style converter.
- The three retangular mounting pads for the flywheel bolts indicate a stronger duty converter.
- Lesser duty converters had the round mounting lugs welded directly to the housing without the retangular pads.

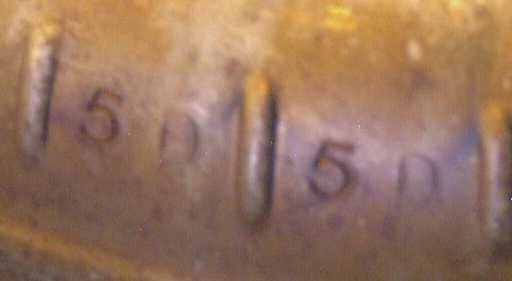

D5 Stamping
Features of Note:
- This picture shows the D 5 stamped between the ribs on the outer
diameter of the converter. - This confirms this is a correct converter for the Turbo Regal 200R4.
