T76 Q Trim Turbocharger

T76


DOWNPIPE SIDE	COMPRESSOR SIDE

Features of Note: On-Center Housing Notice the HUGE Q trim turbine wheel 4 bolt turbo	Features of Note: Notice the HUGE 76 compressor wheel Integral inlet bell Very large and long scroll compressor housing
BOTTOM	COMPRESSOR HOUSING

Features of Note: LARGE exhaust inlet (rectangular vs round) Very large compressor housing Standard looking center section 4 bolt turbo Rectangular mounting flange	Features of Note: This picture shows the inside of the compressor housing Notice provision for a large wheel (76)
COMPRESSOR WHEEL	EXHAUST HOUSING

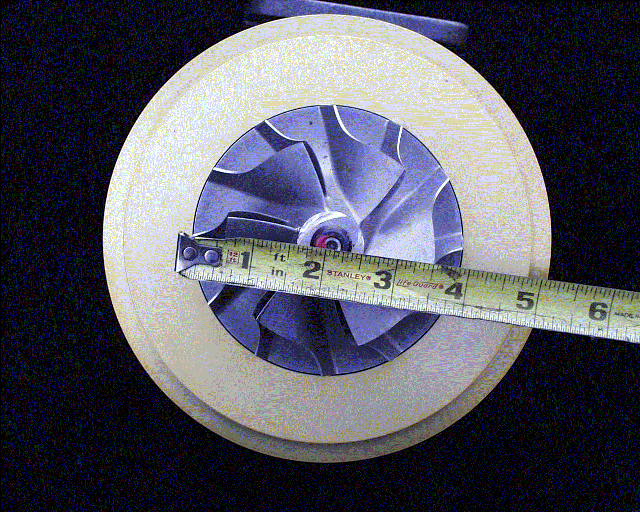

Features of Note: The wheel is almost 4" across! Notice the "twist" to the blades and coarse pitch	Features of Note: Very large turbine housing A/R of .96 4 bolt turbo You can clearly see the on-center downpipe mounting provisions
COMPRESSOR WHEEL	TURBINE WHEEL

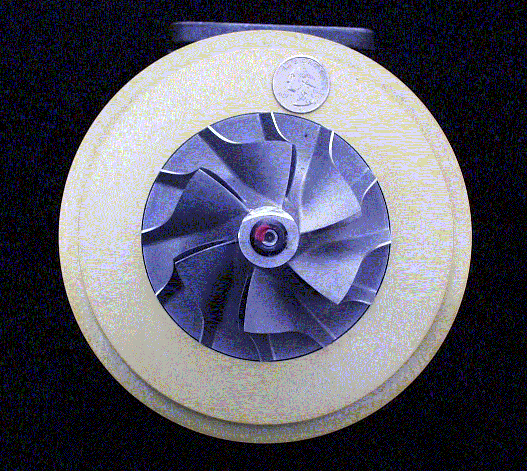

Features of Note: Another view of the compressor wheel with a quarter next to it to give a sense of scale...big, huh? You can really see the twist of the blades here	Features of Note: Large turbine wheel Q trim wheel You can see how large the backside of the compressor housing is in the this picture
