LT88 Q Trim Turbocharger

LT88

DOWNPIPE SIDE	COMPRESSOR SIDE
Features of Note: Precision Housing Q trim turbine wheel The 88 can be had with standard P-trim in Garrett or PTE, and with Q-trim in a welded Garrett or machined PTE, so there are variants Made by Limit Engineering. Precision 0.85 3-bolt machined for Q-trim wheel. Pass. header flange and dp flange had to be opened up/radiused to match the larger inlet/outlet ports of this PTE/Q	Features of Note: 88 mm compressor wheel in polished Turbonetics housing 4" inlet. Integral inlet bell Very large and long scroll compressor housing
COMPRESSOR HOUSING	TURBINE HOUSING

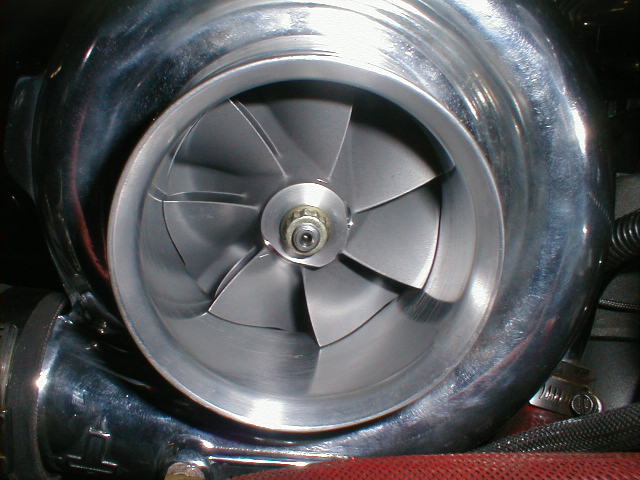

Features of Note: A closer view of the HUGE 88 mm compressor wheel Very large compressor housing Notice the coarse pitch of the compressor blads	Features of Note: Large Q trim turbine wheel Conventional appearing mating flange PTE housing

Submitted by:
