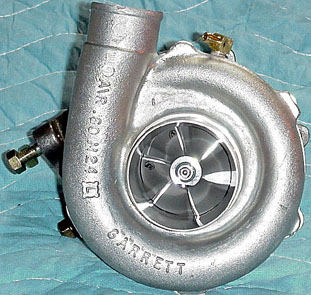

COMPRESSOR SIDE
|
DOWNPIPE SIDE
|
|
|
Features of Note:
- Notice the integral inlet bell
- Notice the larger than stock compressor inlet and wheel
- Notice the brass outlet for the wastegate actuator is on the scroll itself (instead of the outlet nipple, like the stockers)
|
Features of Note:
- Notice the turbine wheel is larger than stock
- Notice there is quite a bit of "meat" on the upper left part of the downpipe mating surface
- The turbine has a much "straighter" style blade than the stock wheel
- Notice the "fatter" Precision style housing
|
BOTTOM SIDE
|

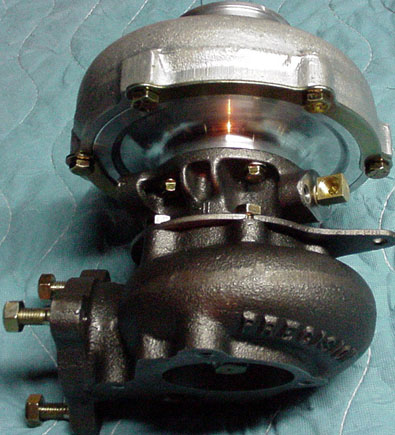

TOP SIDE
|
|
|
Features of Note:
- Notice how much "fatter" the compressor side of the turbo is than stock
- Notice the integral inlet bell
- Notice the standard looking center section
|
Features of Note:
- Notice how much "fatter" the turbine side of the turbo is than stock
- Notice the standard oil inlet provision
- Notice the way the turbo shield support fits on the exhaust housing
- Notice the standard looking center section
|
FRONT SIDE
|

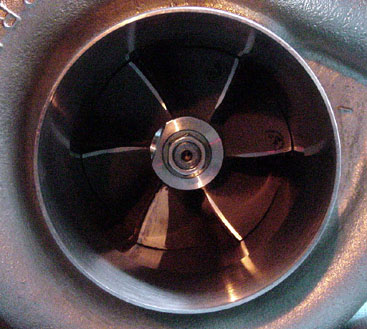

COMPRESSOR WHEEL
|
|
|
Features of Note:
- Notice the mounting provision for the turbo sheild
- You can see the pressure "nipple" mounting point very well in this photo
|
Features of Note:
- Notice the coarser pitch of the blades
- Notice the "big shaft" style center section
|
