UPPIPE SIDE
DOWNPIPE SIDE

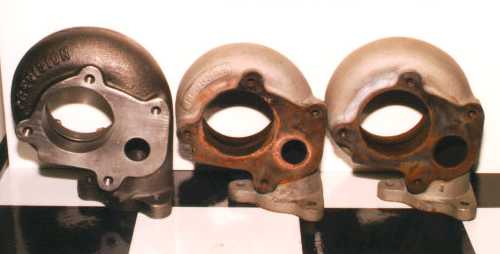

Features of Note:
- Left to Right
- 0.63 Precision exhaust housing
- 0.63 Garrett exhaust housing
- 0.82 Garrett exhaust housing
- Precision housing appears to even bigger than the 0.82 Garret, although the top of the scroll narrows faster

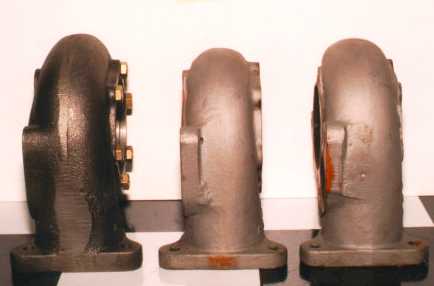

Features of Note:
- Left to Right
- 0.63 Precision exhaust housing
- 0.63 Garrett exhaust housing
- 0.82 Garrett exhaust housing
- All three housings have very similar features on this side
- Notice the Precision housing is noticably bigger in the scroll area
EXHAUST SIDE
SCROLL SIDE

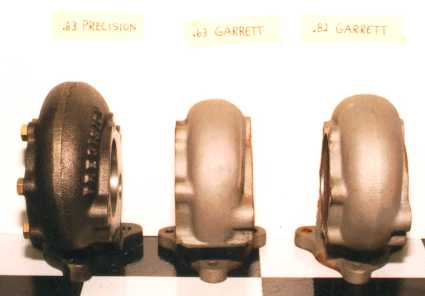

Features of Note:
- Left to Right
- 0.63 Precision exhaust housing
- 0.63 Garrett exhaust housing
- 0.82 Garrett exhaust housing
- Notice the steeper "up angle" of the Precision housing

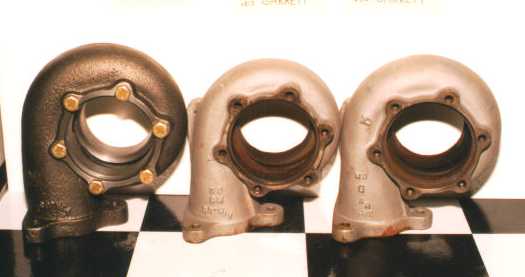

Features of Note:
- Left to Right
- 0.63 Precision exhaust housing
- 0.63 Garrett exhaust housing
- 0.82 Garrett exhaust housing
- Precision housing is a taller scroll, but narrower than the Garrett 0.82
