Walbro Fuel Pump Flow Charts
Dan Goldstein
Flow Chart GSS307 vs GSS340
ChartObject Chart 8

Click here for an Excel chart of the above...

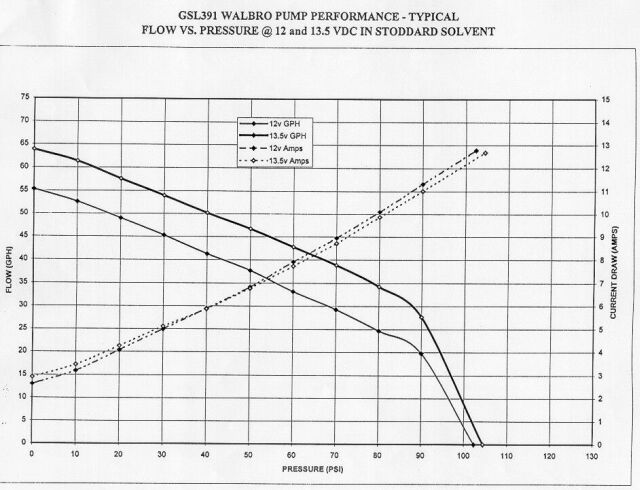

Flow Chart GSL391
Flow Chart GSL392

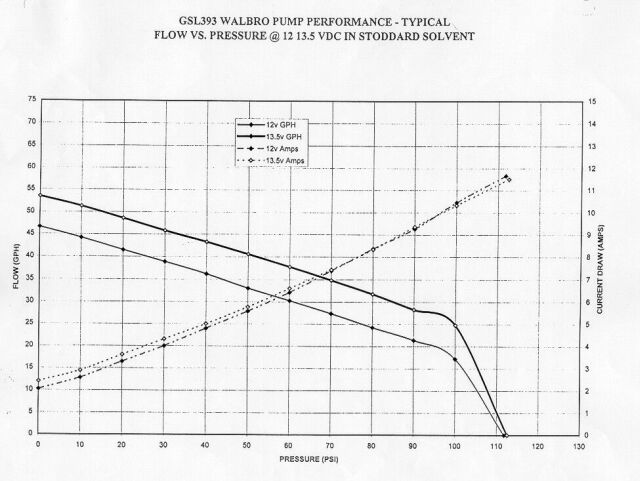

Flow Chart GSL393

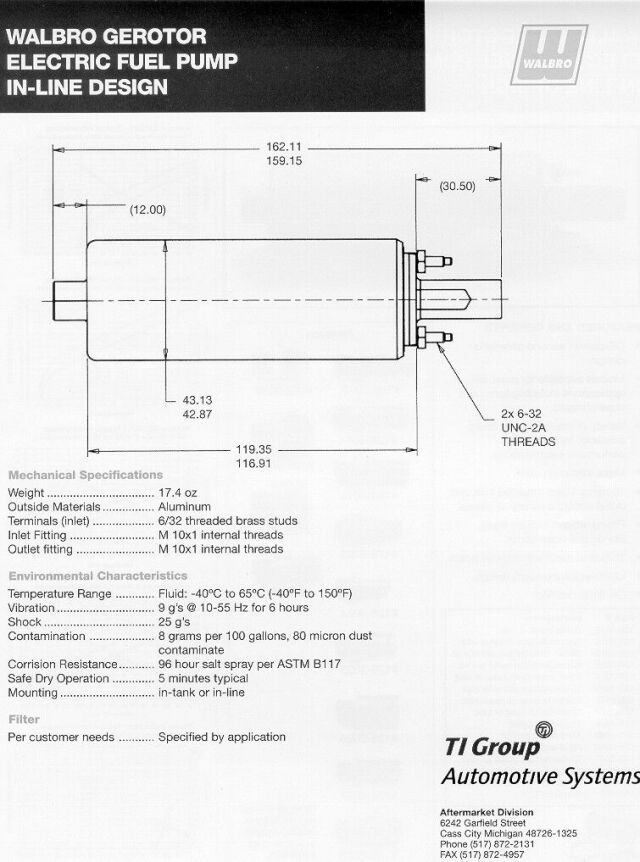

Pump Design


Last updated:
