RaceGate Wastegate

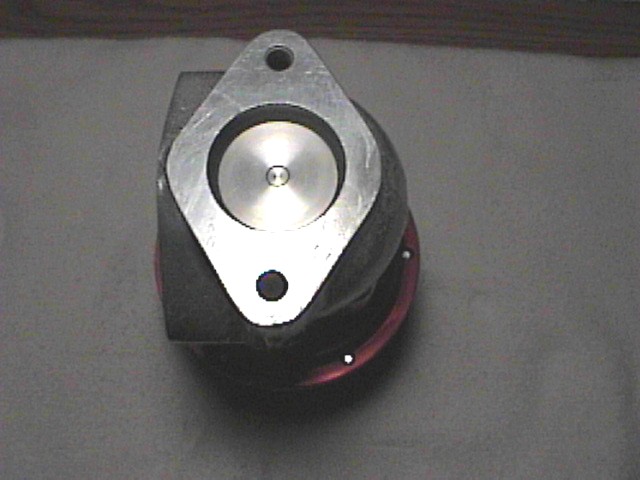

Features of Note
:
  • Flat puck face and large port

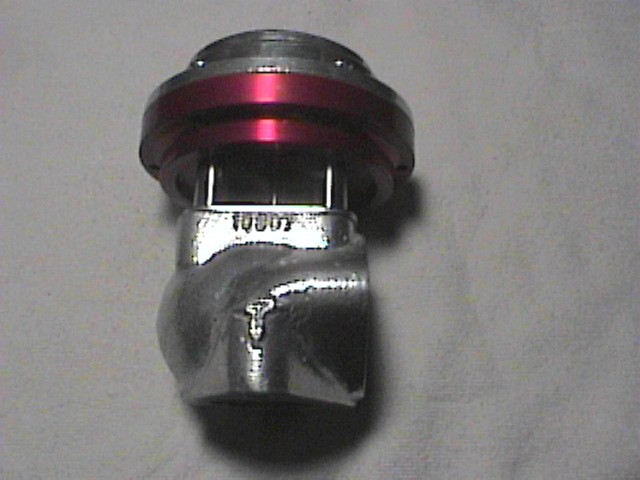

BACKSIDE

PORT SIDE
Features of Note:
  • Notice the smooth bend for beter flow
  • Actuator diaphragm is relatively flat

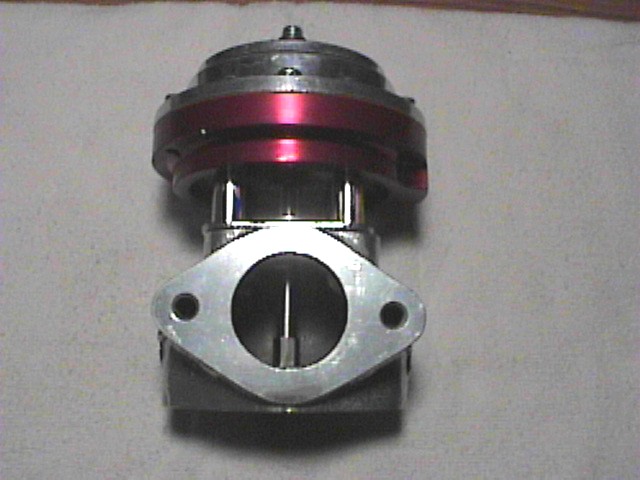

Features of Note
:
  • Notice the poppet style valve
  • Large flow area and smooth "back" wall to port
"Puck" Side

Submitted by:

Jesse Adkins
