Buick V6 Oil Pan Photo Guide
kenmosher@home.com
.
General Information
The early oil blocks (i.e. pre mid-year 1985) were all 14 bolt oil pans. After that, they were 20 bolt oilpans.
Oil Pans
Stock OIl Pans
Aftermarket Oil Pan
Baffles

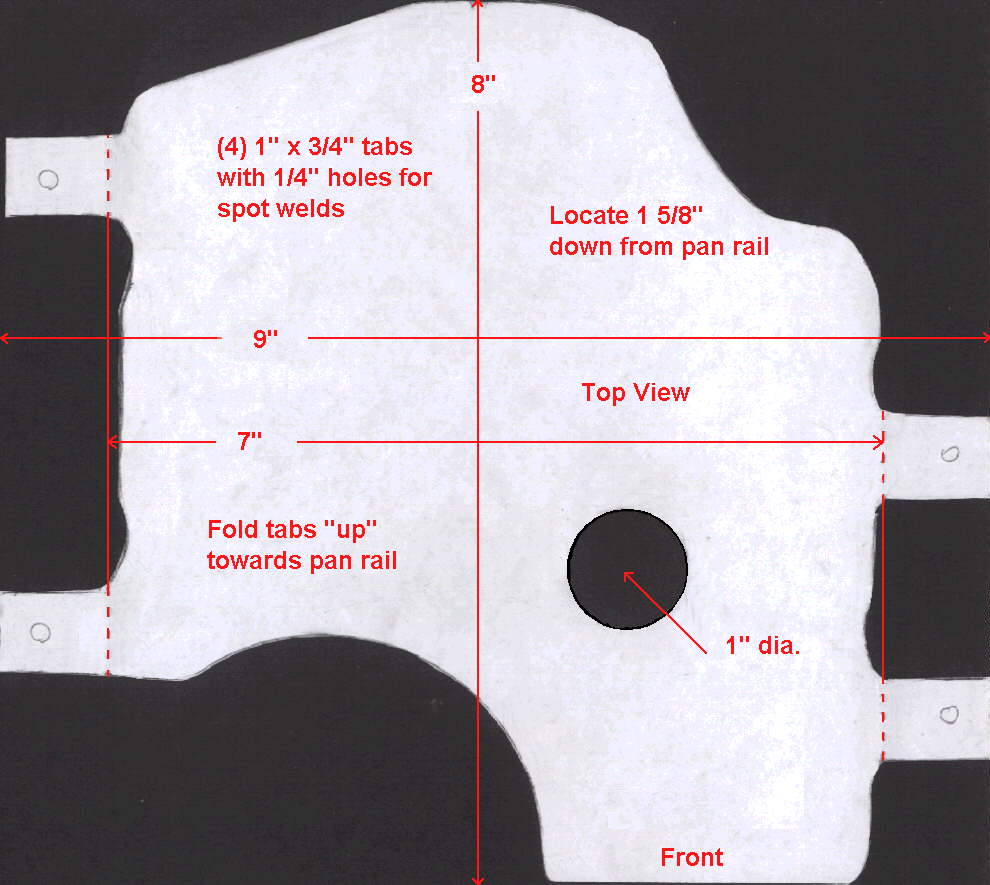

OIl Pan Baffles Pattern -
Ed Pinzel

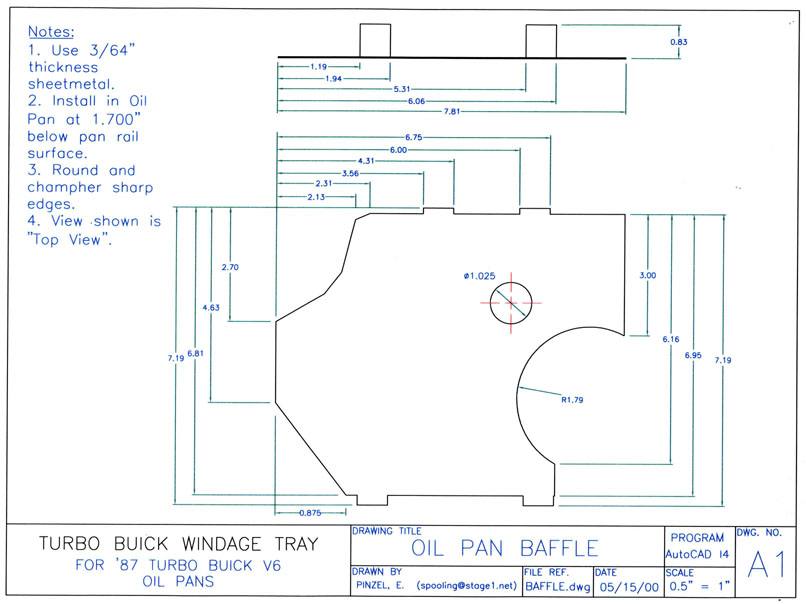

Small version (for screen display)

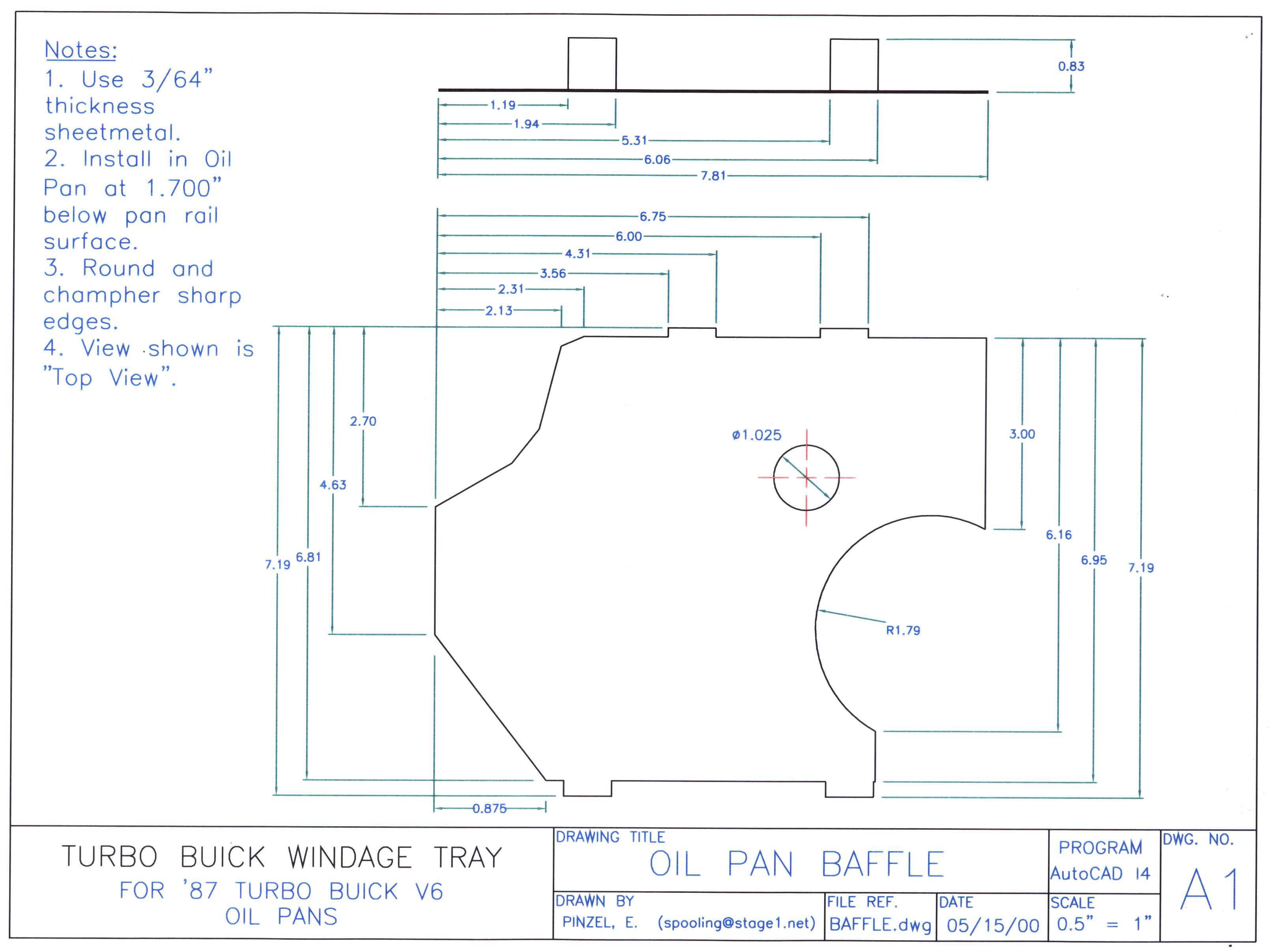

LARGE detailed blueprint ... download (right click and Save Image As for printing)
