Buick Oil Pan Photo Guide |
|
Bottom/Outside |
Features of Note:
- the 14 bolt pan on the left and the 20 bolt pan on the right.
- 14 botl pan has sqare nose, 20 bolt pan has pointed nose.
- Barely visible is the supports welded bleow the pan rail on the 20 bolt pan.
- Although the 20 bolt pan looks taller, they have a depth of 5 3/8" on the inside.
|

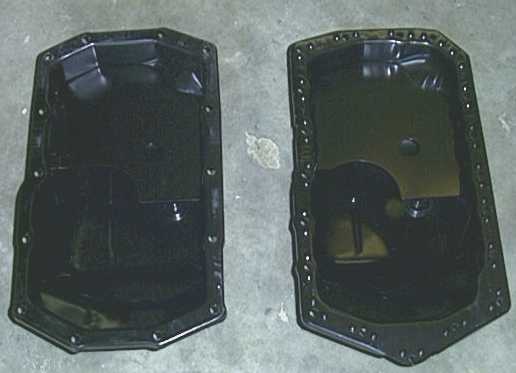

Top/Inside |
Features of Note:
- The 14 bolt is on the left and the 20 bolt on the right.
- Both pans have baffles welded inside for oil control.The 14 bolt pan has a smooth pan rail surface.
- The 20 bolt pan has dimples to grip the pan gasket and also prevent the gasket from being completely flattened when the bolts are over tightened.
|
